GPS and INS

Position and orientation of Polar 5 and Polar 6 are recorded by an on-board GPS sensor and the internal navigation system (INS). The following example presents the variables recored by these instruments.

Data access

To analyse the data they first have to be loaded by importing the (AC)³ airborne meta data catalogue. To do so the ac3airborne package has to be installed. More information on how to do that and about the catalog can be found here. Since some of the data, like the preliminary data of the HALO-(AC)³ campaign, is stored on the (AC)³ nextcloud server, username and password as credentials (registration) are required and need to be loaded from environment variables.

import os
from dotenv import load_dotenv

load_dotenv()

# local caching
kwds = {'simplecache': dict(
    cache_storage=os.environ['INTAKE_CACHE'],
    same_names=True
)}

import ac3airborne

Get data

All flights of Polar 5:

cat = ac3airborne.get_intake_catalog()
meta = ac3airborne.get_flight_segments()
flights_p5 = {}
for campaign in ['ACLOUD', 'PAMARCMiP', 'AFLUX', 'MOSAiC-ACA','HALO-AC3']:
    flights_p5.update(meta[campaign]['P5'])

All flights of Polar 6:

flights_p6 = {}
for campaign in ['ACLOUD', 'HALO-AC3']:
    flights_p6.update(meta[campaign]['P6'])

Note

Have a look at the attributes of the xarray dataset ds_gps_ins for all relevant information on the dataset, such as author, contact, or citation information.

ds_gps_ins = cat['AFLUX']['P5']['GPS_INS']['AFLUX_P5_RF10'](storage_options=kwds).to_dask()
ds_gps_ins

/net/sever/mech/miniconda3/envs/howtoac3/lib/python3.11/site-packages/intake_xarray/base.py:21: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
  'dims': dict(self._ds.dims),

<xarray.Dataset> Size: 1MB
Dimensions:  (time: 17808)
Coordinates:
  * time     (time) datetime64[ns] 142kB 2019-04-03T10:06:26 ... 2019-04-03T1...
Data variables:
    alt      (time) float64 142kB ...
    gs       (time) float64 142kB ...
    lat      (time) float64 142kB ...
    lon      (time) float64 142kB ...
    vs       (time) float64 142kB ...
    pitch    (time) float64 142kB ...
    roll     (time) float64 142kB ...
    heading  (time) float64 142kB ...
Attributes: (12/15)
    title:          P5 position and attitude data
    description:    1 Hz subset based on GPS1 and INS data processed by AWI e...
    instruments:    GPS1 and INS
    version:        1.1
    institution:    Alfred-Wegener-Institut Helmholtz-Zentrum für Polar- und ...
    author:         Dr. Mario Mech
    ...             ...
    featureType:    trajectory
    mission:        AFLUX
    platform:       P5
    flight_number:  RF10
    history:        acquired by P5 during AFLUX campaign, quality checked by ...
    created:        2022-05-25

xarray.Dataset

• Dimensions:
  • time: 17808
• Coordinates: (1)
  • time
    (time)
    datetime64[ns]
    2019-04-03T10:06:26 ... 2019-04-...

    standard_name :

    time

    long_name :

    time in seconds since epoch

    array(['2019-04-03T10:06:26.000000000', '2019-04-03T10:06:27.000000000',
           '2019-04-03T10:06:28.000000000', ..., '2019-04-03T15:03:21.000000000',
           '2019-04-03T15:03:22.000000000', '2019-04-03T15:03:23.000000000'],
          shape=(17808,), dtype='datetime64[ns]')

• Data variables: (8)
  • alt
    (time)
    float64
    ...

    standard_name :

    height_above_reference_ellipsoid

    long_name :

    WGS84 datum/elliptical height

    units :

    m

    [17808 values with dtype=float64]

  • gs
    (time)
    float64
    ...

    standard_name :

    platform_speed_wrt_ground

    long_name :

    groundspeed of platform

    units :

    kts

    [17808 values with dtype=float64]

  • lat
    (time)
    float64
    ...

    standard_name :

    latitude

    long_name :

    WGS84 datum/latitude

    units :

    degrees_north

    [17808 values with dtype=float64]

  • lon
    (time)
    float64
    ...

    standard_name :

    longitude

    long_name :

    WGS84 datum/longitude

    units :

    degrees_east

    [17808 values with dtype=float64]

  • vs
    (time)
    float64
    ...

    standard_name :

    platform_vertical_speed

    long_name :

    vertical speed

    units :

    m/s

    [17808 values with dtype=float64]

  • pitch
    (time)
    float64
    ...

    standard_name :

    platform_pitch_fore_up

    long_name :

    pitch angle of platform

    units :

    degrees

    [17808 values with dtype=float64]

  • roll
    (time)
    float64
    ...

    standard_name :

    platform_roll_starboard_down

    long_name :

    roll angle of platform

    units :

    degrees

    [17808 values with dtype=float64]

  • heading
    (time)
    float64
    ...

    standard_name :

    platform_yaw_fore_starboard

    long_name :

    true heading

    units :

    degrees

    [17808 values with dtype=float64]

• Indexes: (1)
  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['2019-04-03 10:06:26', '2019-04-03 10:06:27',
                   '2019-04-03 10:06:28', '2019-04-03 10:06:29',
                   '2019-04-03 10:06:30', '2019-04-03 10:06:31',
                   '2019-04-03 10:06:32', '2019-04-03 10:06:33',
                   '2019-04-03 10:06:34', '2019-04-03 10:06:35',
                   ...
                   '2019-04-03 15:03:14', '2019-04-03 15:03:15',
                   '2019-04-03 15:03:16', '2019-04-03 15:03:17',
                   '2019-04-03 15:03:18', '2019-04-03 15:03:19',
                   '2019-04-03 15:03:20', '2019-04-03 15:03:21',
                   '2019-04-03 15:03:22', '2019-04-03 15:03:23'],
                  dtype='datetime64[ns]', name='time', length=17808, freq=None))

• Attributes: (15)

  title :

  P5 position and attitude data

  description :

  1 Hz subset based on GPS1 and INS data processed by AWI engineers

  instruments :

  GPS1 and INS

  version :

  1.1

  institution :

  Alfred-Wegener-Institut Helmholtz-Zentrum für Polar- und Meeresforschung

  author :

  Dr. Mario Mech

  contact :

  mario.mech@uni-koeln.de, martin.gehrmann@awi.de

  source :

  DSHIP excerpt

  convention :

  CF-1.8

  featureType :

  trajectory

  mission :

  AFLUX

  platform :

  P5

  flight_number :

  RF10

  history :

  acquired by P5 during AFLUX campaign, quality checked by AWI and uploaded to DSHIP database, extracted and reformated by author

  created :

  2022-05-25

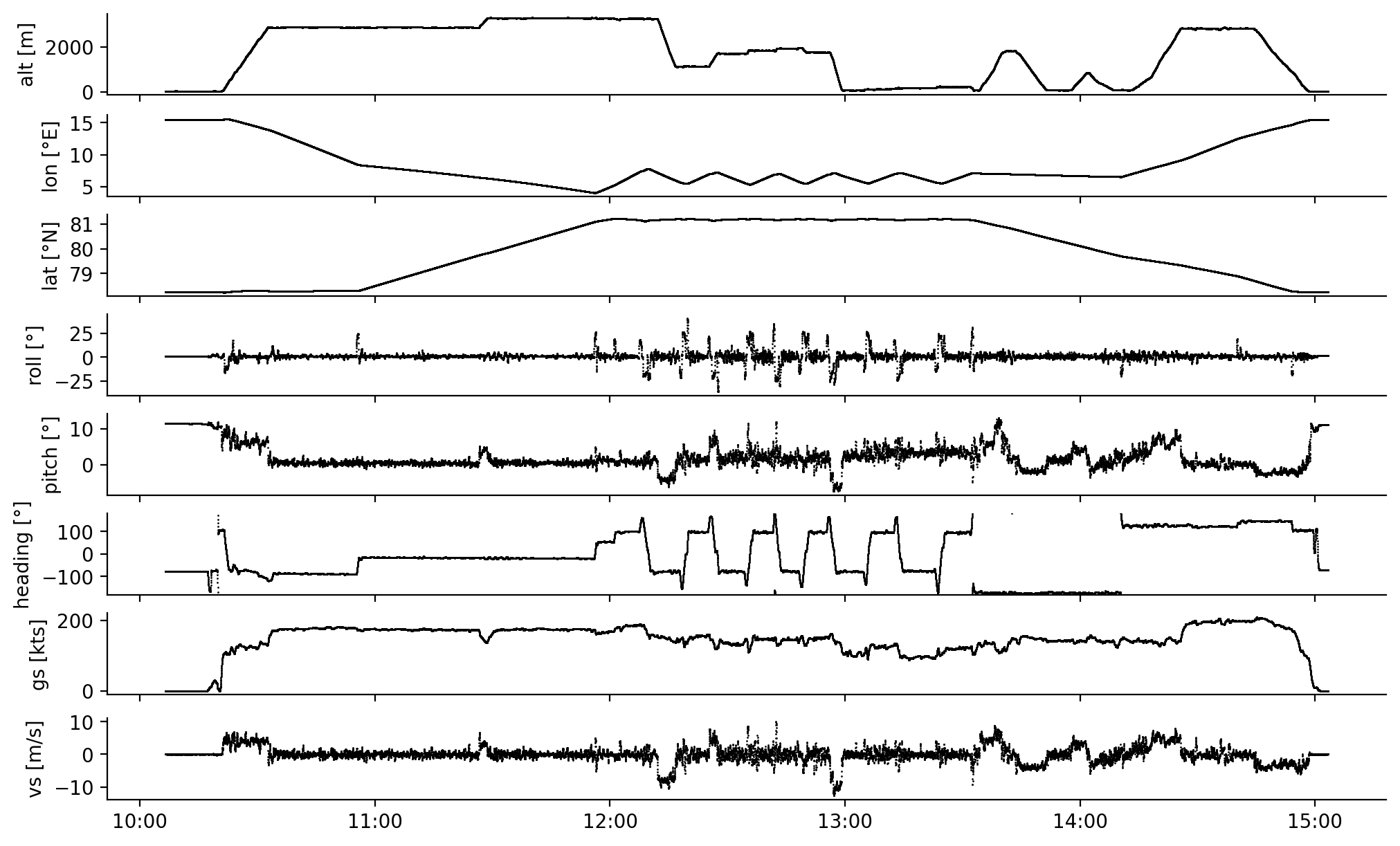

The dataset ds_gps_ins includes the aircraft’s position (lon, lat, alt), attitude (roll, pitch, heading), and the ground speed, vertical speed and true air speed (gs, vs, tas).

Load flight phase information

Polar 5 flights are divided into segments to easily access start and end times of flight patterns. For more information have a look at the respective github repository.

At first we want to load the flight segments of (AC)³ airborne

meta = ac3airborne.get_flight_segments() # this happened before, but it doesn't hurt.

The following command lists all flight segments into the dictionary segments:

segments = {s.get("segment_id"): {**s, "flight_id": flight["flight_id"]}
             for campaign in meta.values()
             for platform in campaign.values()
             for flight in platform.values()
             for s in flight["segments"]
            }

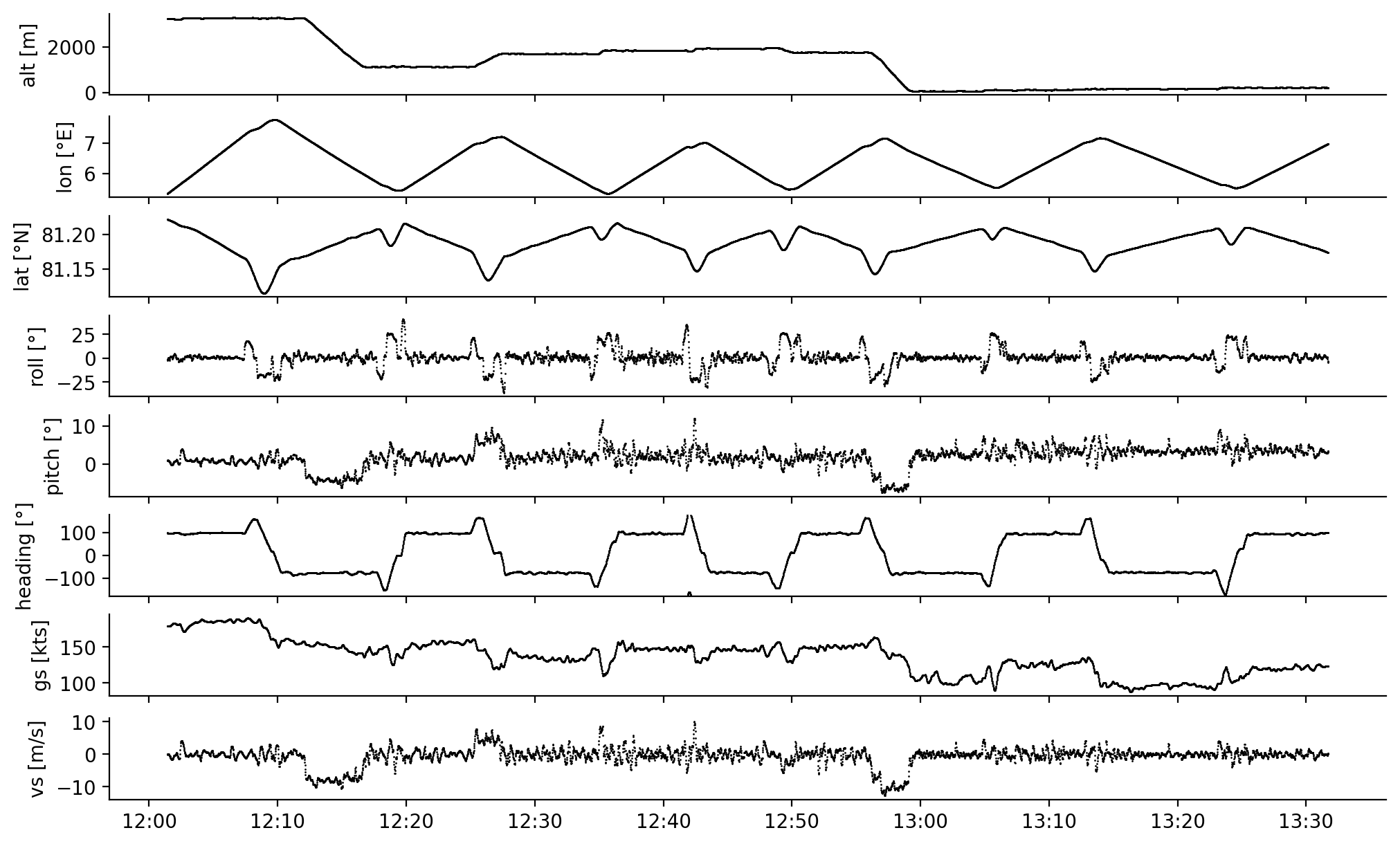

In this example, we want to look at a racetrack pattern during ACLOUD_P5_RF10.

seg = segments["AFLUX_P5_RF10_rt01"]

Using the start and end times of the segment, we slice the data to this flight section.

ds_gps_ins_rt = ds_gps_ins.sel(time=slice(seg["start"], seg["end"]))

Plots

%matplotlib inline
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
import matplotlib.colors as mcolors
import numpy as np
import ipyleaflet
from simplification.cutil import simplify_coords_idx
plt.style.use("../../mplstyle/book")

Plot all flights

def simplify_dataset(ds, tolerance):
    indices_to_take = simplify_coords_idx(np.stack([ds.lat.values, ds.lon.values], axis=1), tolerance)
    return ds.isel(time=indices_to_take)

# define colors for the flight tracks
colors = [mcolors.to_hex(c)
          for c in plt.cm.inferno(np.linspace(0, 1, len(flights_p5)))]

m = ipyleaflet.Map(basemap=ipyleaflet.basemaps.Esri.NatGeoWorldMap,
                   center=(80., 6), zoom=3)

for (flight_id, flight),color in zip(flights_p5.items(),colors):
    mission = flight['mission']
    # read gps dataset of flight
    ds = cat[mission]['P5']['GPS_INS'][flight_id].to_dask()

    # slice to takeoff and landing times
    ds = ds.sel(time=slice(meta[mission]['P5'][flight_id]['takeoff'], meta[mission]['P5'][flight_id]['landing']))

    # reduce dataset for plotting
    ds_reduced = simplify_dataset(ds, tolerance=1e-5)

    track = ipyleaflet.Polyline(
        locations=np.stack([ds_reduced.lat.values,
                            ds_reduced.lon.values], axis=1).tolist(),
        color=color,
        fill=False,
        weight=2,
        name=flight_id)

    m.add_layer(track)

m.add_control(ipyleaflet.ScaleControl(position='bottomleft'))
m.add_control(ipyleaflet.LegendControl(dict(zip(flights_p5.keys(), colors)),
                                       name="Flights",
                                       position="bottomright"))
m.add_control(ipyleaflet.LayersControl(position='topright'))
m.add_control(ipyleaflet.FullScreenControl())
display(m)
